Thermography Inspection Dubai — Infrared Thermal Imaging for Hidden Moisture and Mold Detection

Dubai's climate creates one of the most relentless hidden moisture environments in the world. Every day, outdoor air at 40–50°C with relative humidity reaching 90% presses against the cool surfaces of every air-conditioned interior. Wherever that warm, moisture-laden air makes contact with a surface below its dew point — a wall, a ceiling, a structural element, a hidden pipe — condensation forms. In dark, confined cavities, that condensation feeds mold colonies long before a single visible sign appears at the surface. By the time you see a stain, smell an odour, or notice paint blistering, the mold has typically been active for three to six months.

Thermography inspection in Dubai is the only non-invasive diagnostic method that reveals this hidden moisture at the early stage — before it becomes a remediation problem. A FLIR thermal camera detects the surface temperature anomalies created by moisture accumulation in walls, ceilings, floors, and structural elements. Wet building materials retain and release heat at different rates from dry materials, producing distinct thermal signatures that a trained, FLIR-certified thermographer can identify, locate, and verify with a calibrated moisture meter. The result is a precise moisture map of your building — every wet zone located, quantified, and documented — without opening a single wall surface.

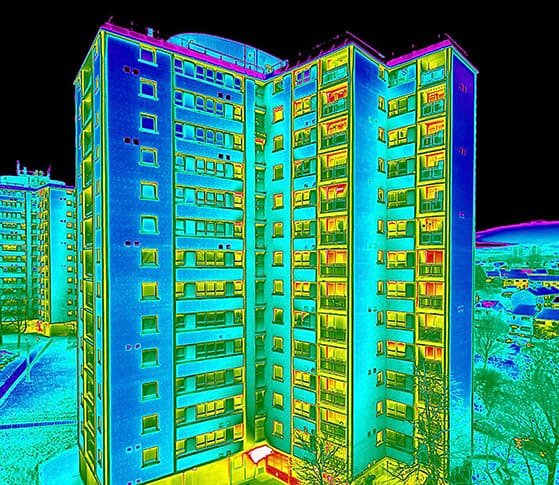

Insulation deficiencies and thermal bridging are among the most common findings in Dubai's building stock. Thermal imaging reveals missing, displaced, or degraded insulation inside wall cavities and ceiling voids — areas where the building envelope fails to maintain adequate thermal separation between the 50°C exterior and 22°C interior. At structural thermal bridges — concrete columns, lintels, slab edges, and balcony connections that bypass the insulation layer — surface temperatures drop below the dew point of conditioned air, creating persistent condensation zones that feed mold growth. These weak points are completely invisible to the naked eye but produce clear, unmistakable signatures on a professional thermal image.

Air leakage detection is another critical application. Uncontrolled air infiltration through imperfect envelope seals — around window frames, at slab-to-wall junctions, through service penetrations, and at curtain wall joints — brings warm, humid outdoor air directly into the building fabric. Thermal imaging identifies these air leakage paths as distinct temperature anomalies at infiltration points, often revealing pathways that visual inspection alone cannot locate. In Dubai's climate, every undetected air leakage path is a continuous channel for moisture-laden air to enter and condense inside the building.

Weak point investigation targets the specific building elements most prone to failure in Dubai's conditions: window-to-wall interfaces, balcony slab penetrations, roof-to-wall junctions, MEP service entries, and expansion joints. These are the locations where thermal cycling, UV degradation, and construction tolerances combine to create the earliest envelope failures. A systematic thermal scan of these weak points identifies deterioration at the earliest stage — when resealing or targeted repair costs a fraction of the remediation required after moisture has penetrated the building fabric.

Mold Busters® has completed over 650 thermal surveys across Dubai — from JBR apartment towers and DIFC commercial floors to Arabian Ranches villas and Dubai South industrial facilities. Our FLIR-certified thermographers conduct systematic, methodical thermal surveys under optimal temperature differential conditions, verifying every identified thermal anomaly with calibrated moisture meters to eliminate false positives. Every finding is documented with full-resolution annotated thermal images, visible-light comparison photographs, moisture meter readings, and a comprehensive moisture map. This is the diagnostic intelligence that enables targeted, cost-efficient remediation — and the early warning system that prevents remediation from ever being necessary.

Whether you are buying a property, managing a building, investigating persistent mold, planning a renovation, or conducting due diligence before a lease or sale, thermal imaging inspection UAE by Mold Busters® gives you the most complete, non-destructive picture of your building's moisture condition currently available. If moisture is present anywhere in your building fabric, our FLIR inspection will find it.

The Physics of Thermal Moisture Detection

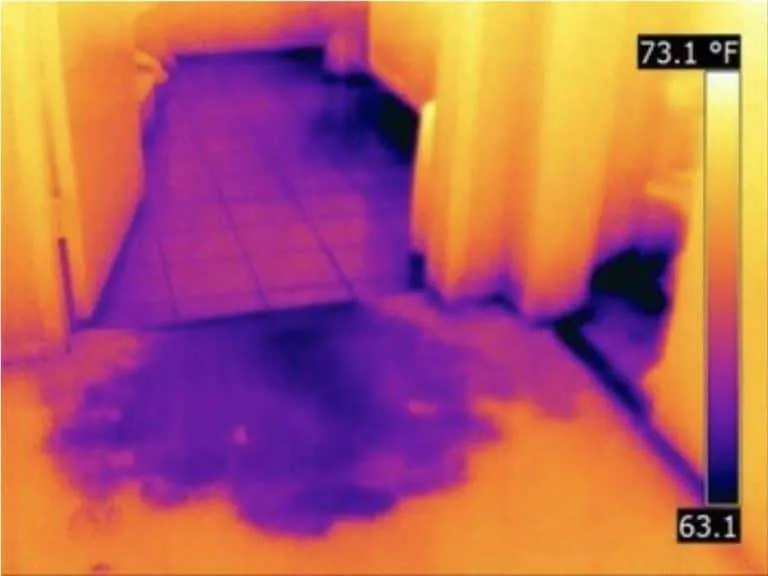

Every material in a building has a thermal mass — the capacity to absorb, retain, and release heat. Dry building materials (concrete, plasterboard, insulation, timber framing) have characteristic thermal behaviour that produces predictable surface temperature profiles under a professional FLIR thermal camera. When those materials become wet, their thermal mass changes dramatically: water has a very high specific heat capacity, meaning wet materials retain heat longer and release it more slowly than dry materials. This differential thermal behaviour creates a distinct anomaly on a thermal image — a cooler area on an interior wall during daytime heating cycles, or a warmer area during overnight cooling — that trained interpretation can identify and verify.

This is the physical basis of thermal survey moisture detection: not looking for moisture directly, but identifying the thermodynamic signature that moisture creates in building materials. The larger the moisture accumulation, the more pronounced the thermal anomaly — which means that even moisture entirely concealed behind plasterboard, within an insulation layer, or inside a concrete element can be detected at the building surface using a professional-grade FLIR camera under the right temperature differential conditions.

International Standards We Follow

Our thermography methodology is aligned with internationally recognised standards to ensure consistent, defensible, and compliant results:

• ASTM E1186 — Standard Practices for Air Leakage Site Detection in Building Envelopes and Air Barrier Systems. Governs our methodology for detecting air infiltration pathways using thermal imaging under controlled pressure differentials.
• ASTM C1153 — Standard Practice for Location of Wet Insulation in Roofing Systems Using Infrared Imaging. Applied to our flat roof thermal surveys for detecting moisture-saturated insulation layers.
• ASTM 1934 — Standard Guide for Examining Electrical and Mechanical Equipment with Infrared Thermography. Applied when our surveys extend to electrical distribution panels and mechanical plant as part of comprehensive building audits.
• BS EN 13187 — Thermal Performance of Buildings: Qualitative Detection of Thermal Irregularities in Building Envelopes (Infrared Method). The primary European standard governing our building envelope thermal survey methodology.
• ISO 18434-1 — Condition Monitoring and Diagnostics of Machines: Thermography — General Procedures. Applied to our mechanical and HVAC equipment thermal assessments.
• EHS/Trakhees Compliance — Our survey reports are produced in formats accepted by Dubai Municipality (DM), Trakhees, and EHS authorities for regulatory submissions and compliance documentation.

Dual-Method Verification

Every thermal anomaly we identify is verified at the surface with a calibrated moisture meter before it is recorded as a finding. If a thermal anomaly does not correlate with elevated moisture meter readings, it is logged as a thermal artefact and excluded from the report's moisture findings. This dual-method approach — hidden moisture thermal imaging confirmed by physical measurement — is what makes our reports reliable enough fs, property transactions, contractor briefings, and regulatory submissions.

FLIR Professional-Grade Thermal Cameras

We use professional FLIR thermal cameras with detector resolution and thermal sensitivity suited to building envelope and moisture investigation — not the consumer-grade thermal attachments used by general inspectors. Professional FLIR cameras in the building inspection range offer detector resolutions of 320×240 to 640×480 pixels with thermal sensitivity (NETD) of ≤ 30 mK — sufficient to resolve temperature differentials of less than 0.03°C. This level of sensitivity is necessary to detect early-stage moisture accumulation in building materials, where the thermal differential may be subtle but the diagnostic significance is high. Our cameras are factory-calibrated and maintained to manufacturer specification, ensuring that every survey produces accurate, legally defensible thermal data.

Calibrated Moisture Meters

Our moisture meters — from leading manufacturers including Trotec, Protimeter, and Flir — are calibrated against manufacturer reference standards and used in both pin mode (invasive, for precise quantification) and non-invasive scan mode (for surface screening). Pin mode readings are taken at every thermal anomaly where surface penetration is appropriate, providing a numerical moisture content value recorded alongside the thermal image reference in the report. Non-invasive scan mode is used for initial area screening and for post-remediation dry-down monitoring where surface penetration is not acceptable. No thermal anomaly is recorded as a moisture finding without a corroborating moisture meter reading.

Hygrometers for Survey Condition Validation

Thermal imaging results are only valid when conducted under adequate temperature differential conditions. We use calibrated digital hygrometers throughout each survey to record indoor dry-bulb temperature, relative humidity, and dew point, alongside outdoor ambient temperature and relative humidity. These values are included in the report to validate that conditions met the minimum 10°C differential threshold required for reliable building thermography under ASTM E1186. If conditions are borderline or insufficient on the day of booking, we reschedule rather than conduct a survey that would produce unreliable results — your investment in a thermal survey should produce findings you can act on with confidence.
